TAISAW钛硕|TST嘉硕1.2*1.0mm Crystal Approved by World-Leading Mobile SoC Design House

发布时间：2023-04-06 14:02:22

2020/11/26

TST announces its 48MHz and 76.8MHz 1.2*1.0mm crystals approved and listed in the design reference.

Taiwan –November, 2020 TST is proud to announce that its crystal resonators designed for a world-leading SoC vendor is qualified and listed in the design reference for their WiFi 802.11AX chipset. Targeting at mobile and WiFi router applications, these two crystal resonators are of miniature package size, supports -40~+105°C operating temperature and has high frequency stability

Features of TZ3465A
● Center Frequency: 48MHz
● Load Capacitance: 9.9pF
● Make Tolerance: -1~+5ppm @25°C ±3°C
● Freq. Stability over Operating Temperature: -15~+13ppm @-40~+100°C
● Resistance: 17Ω typical
● Operating Temperature: -40°C ~ +105 °C

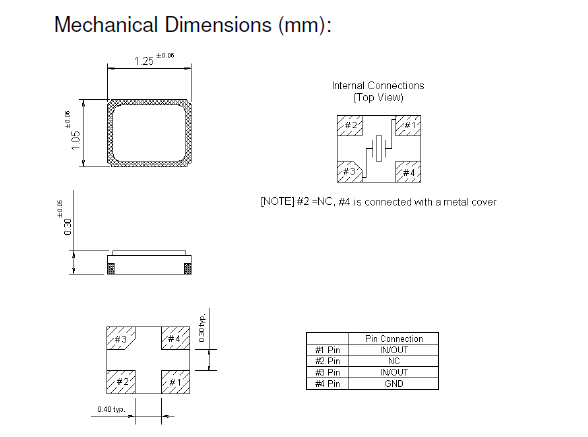

● Size: 1.2x1.0x0.3mm

Features of TZ3620A
● Center Frequency: 76.8MHz
● Load Capacitance: 9.9pF
● Make Tolerance: -4~+4ppm @25°C ±3°C
● Freq. Stability over Operating Temperature: -12~+15ppm @-40~+100°C
● Resistance: 10~30Ω typical
● Operating Temperature: -40°C ~ +105 °C
● Size: 1.2x1.0x0.3mm
